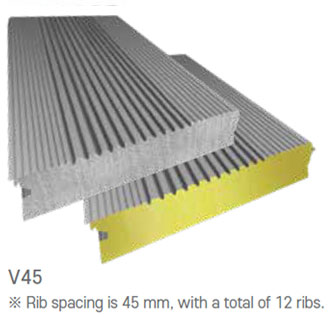

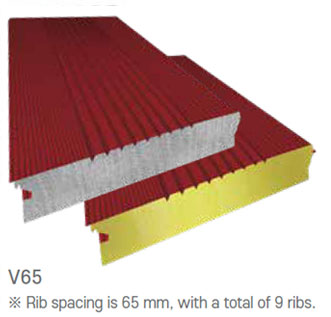

Boltless Panel (V65 / V45)

This panel features harmonious and balanced large waves on a micro-wave background and can be applied in various ways to various buildings.


63cf1467479ade9482016208fd4712dc_1741148755_922.jpg63cf1467479ade9482016208fd4712dc_1741148755_959.jpg

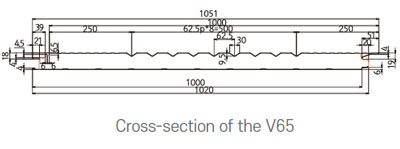

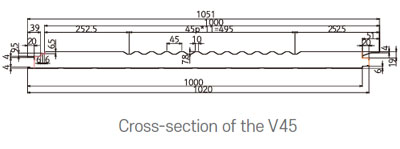

[ Specifications ]

63cf1467479ade9482016208fd4712dc_1741148758_9897.jpg63cf1467479ade9482016208fd4712dc_1741148761_2546.jpg

Boltless V65 / V45 Panel Specs

• Outer covering material : Hot-dip galvanized steel sheet 0.4~0.7mm

• Inner covering material : Hot-dip galvanized steel sheet 0.4~0.7mm

• Inner insulation : Glass wool / Semi-combustible / Flame retardant / General styrofoam



[ Color Chart ]
