Mosaic shadow
Size : 320 x 1000 (mm)
As the back has a bonding treatment applied, there is no need to apply further adhesive, making construction quick and easy.

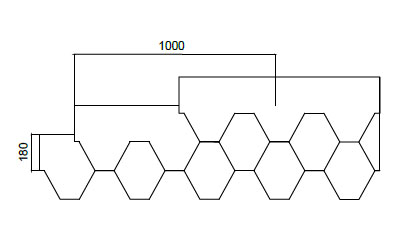

The honeycomb shape and distinct shading enhance the appearance of the roof.
[ Specifications ]

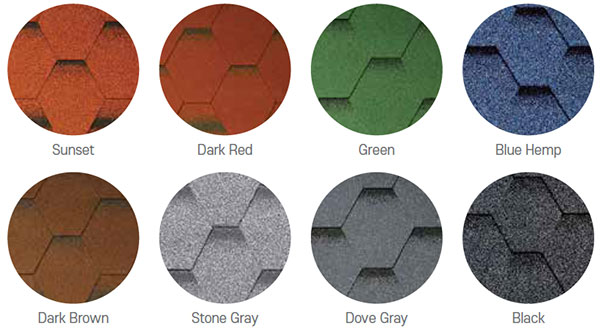

[ Color Chart ]
[ Features ]
Properties |
Testing method |
Performance |
Comparison |
Mass per unit area (kg/m2) |
KS F4750:2016-1 |
4656 g/m2 |
(20±2) ℃ (50±10)％ R.H |
Asphalt penetration |
KS F4750:2016-1 |
Uniform penetration |
|
Tensile strength - Length |
KS F4750:2016-1 |
14 N |
|
Tensile strength - Width |
KS F4750:2016-1 |
11 N |
|
Flexural performance - Length |
KS F4750:2016-1 |
No cracking |
|
Flexural performance - Width |
KS F4750:2016-1 |
No cracking |
|
Tensile properties : Maximum |
KS F4750:2016-1 |
600±200 |
|
Tear resistance L/T,N |
KS F4750:2016-1 |
500±100 |
|
Heat resistance performance | KS F4750:2016-1 |
Coating material detaches by more than 5mm |
|
| Heaving absorption, foaming | |||
| No asphalt seepage | |||
Floor protection |
- |
Silica, PET film, asphalt |
